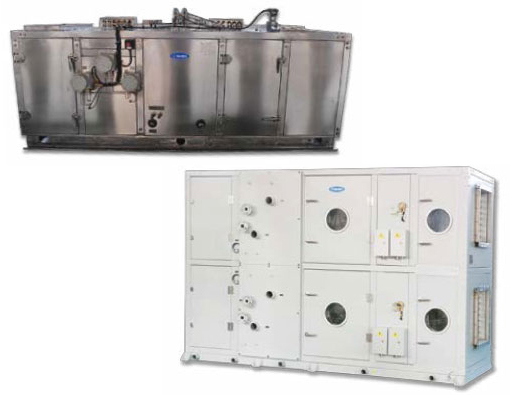

Air Handling Units
An air handling unit is usually a large fabricated structure containing a blower, heating or cooling elements, filter racks or
chambers, sound attenuators, and dampers. We have customized air handling units to fit all offshore & marine applications,
including seamless integration with the ductwork ventilation system. With our experience in designing high quality air
handling units, these products are proven in the most demanding offshore and marine environment.
Air flow: | 2000 ~ 45000m3/h |
Static presuure: | 800 ~ 1500Pa |
Cooling Capacity: | 30Kw ~ 600Kw |
Heating Capacity: | 10kw ~ 800kw |
Cooling Medium: | R407C, R134A, R417A, fresh water |
Heating Medium: | Steam/hot water/hot oil/electric heater optional |
Humidifying Medium: | steam, fresh water optional |
Electrical Control: | CPP or PLC Control |
Voltage: | 380V/3Ph/50Hz ~ 690V/3Ph/60Hz |
